Turing Complete Achievement Circuits

Solution for all achievement levels that require a certain curcuit.

4 NAND = XOR

Complete the XOR level using ONLY 4 NAND

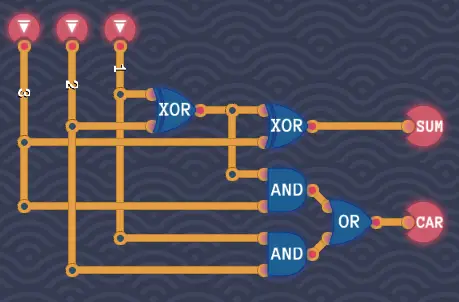

5 Component Full Adder

Complete the full adder level using only 5 blue components

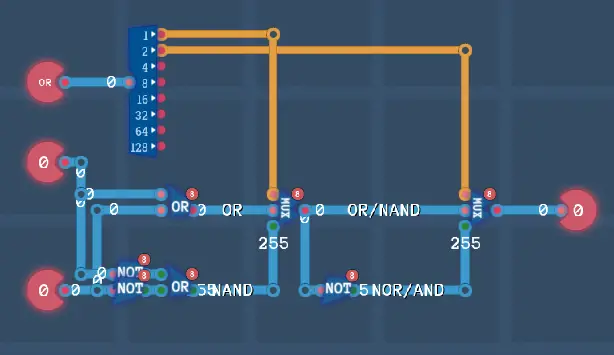

Symmetric ALU

Complete then “Logic Engine” level using only components from the “BYTES” فئة

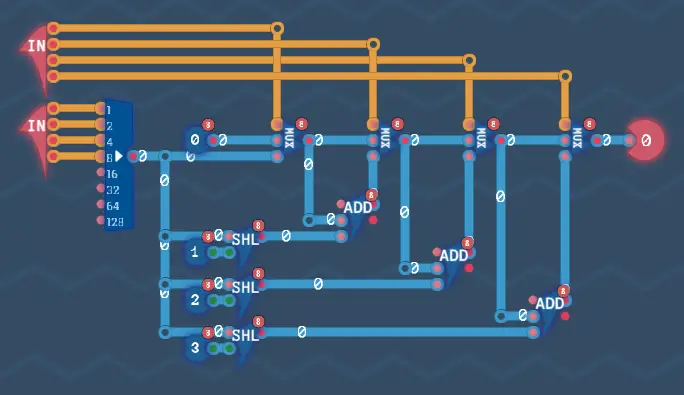

3 Adder Multiply

مكتمل “The Product of Nibbles” using no more than three 8 bit adders

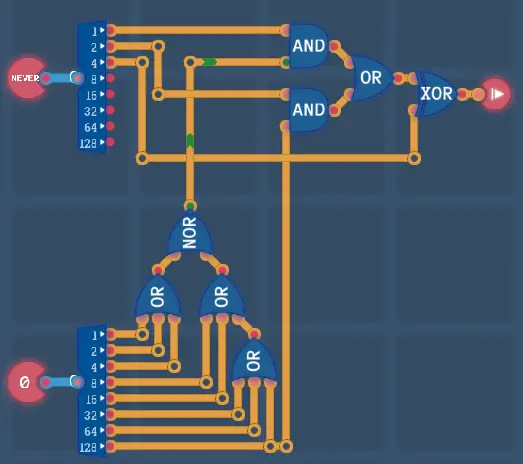

Condition 10

Complete the level called “شروط” using only 10 blue components

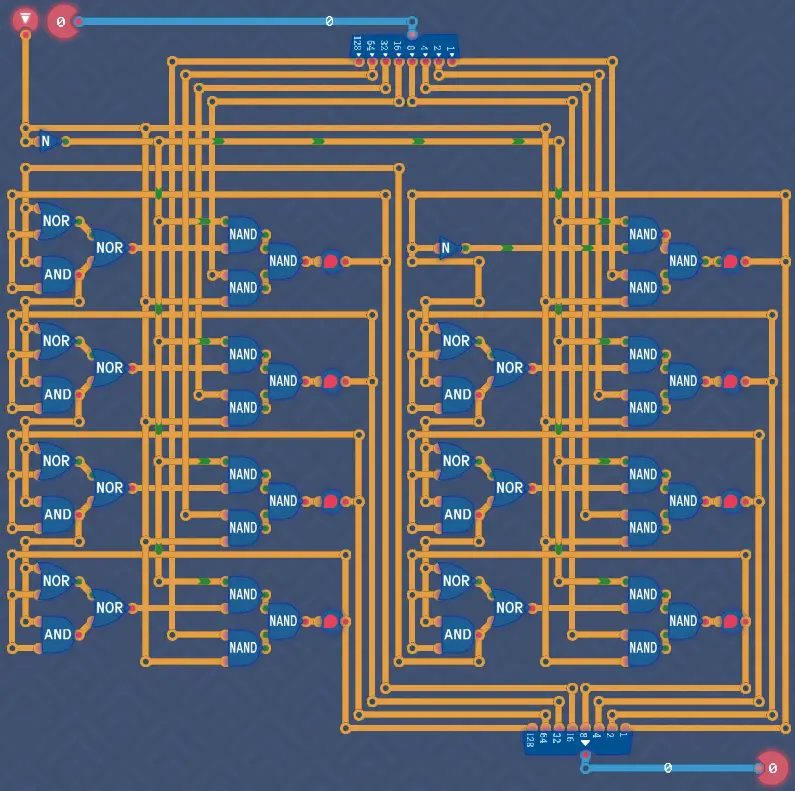

Fast Adder

Complete the byte adder with a delay of 35 or less

(ملحوظة: This circuit has a delay of 36 but still grants the achievement, after the realism update)

Binary Counter

Complete the Counter level with a 65 nand score or less

(ملحوظة: This circuit has a gate score of 55)
